ACM aluminum composite panel consists of two thin layers of aluminum bonded to a non-aluminum core, creating a lightweight yet durable material. They offer excellent rigidity, weather resistance, and design versatility, making them ideal for exterior cladding, signage, and architectural features.
These panels are available in a wide range of finishes and textures, including options that mimic metal, wood, or stone, which adds aesthetic flexibility to various projects. Their combination of strength and lightweight properties allows for easy installation without compromising structural integrity.
Used in both commercial and residential construction, ACM panels also feature fire-retardant cores and high bond strength, meeting safety standards while supporting complex and customized architectural designs.
Overview of ACM Aluminum Composite Panel
ACM aluminum composite panels consist of layered materials engineered for durability, lightness, and design flexibility. Their structure involves key components that determine their strength and weather resistance. The manufacturing process ensures consistent quality and precise bonding. These panels exhibit specific performance traits critical to their success in construction and signage.
See also:Who Should Consider an At-Home STI Test and Why It Matters
What Is An ACM Aluminum Composite Panel
An ACM aluminum composite panel is a flat, rigid panel used primarily in building exteriors, interiors, and signage. It features two thin aluminum sheets bonded to a core material, which may be polyethylene or a fire-resistant core. This “sandwich” construction creates a panel that is both lightweight and structurally stable.
Its design allows for easy fabrication and installation. The aluminum surfaces can be finished with various coatings or textures, offering options for aesthetic customization. This versatility makes it suitable for modern architectural applications and cladding systems.
Core Components and Structure
ACM panels consist of three main parts: two outer aluminum sheets and a core layer in between. The aluminum sheets are typically 0.2 to 0.5 mm thick and provide strength and resistance to corrosion. The core is usually polyethylene (PE) for general use or a fire-retardant (FR) mineral-based material for enhanced safety.
This core layer functions as a rigid support and insulator, impacting the panel’s bending stiffness and fire performance. The bonding process ensures a strong adhesion between the layers, which is essential for weather resistance and durability.
| Component | Material | Function |
| Outer Layers | Aluminum sheets | Strength, corrosion resistance |
| Core Layer | Polyethylene or FR core | Lightweight, insulation, fire safety |
Manufacturing Process
The production of ACM panels begins with preparing the aluminum sheets through cleaning and coating to improve adhesion and durability. The core material is then positioned between the sheets. A high-pressure lamination process bonds these layers together.
The panels are cured under heat and pressure to achieve a uniform surface and strong interlayer adhesion. Finishing touches may include cutting to size, bending, or adding protective films. Strict quality control ensures the panels meet industry standards for flatness and mechanical properties.
Key Properties and Performance
ACM panels are known for their lightweight nature, usually weighing less than solid aluminum sheets of comparable thickness. This reduces structural load and simplifies handling during installation. They offer high rigidity due to the core’s support, resisting warping over large dimensions.
Weather resistance is a crucial property, with coatings providing protection against UV rays, moisture, and corrosion. Fire-retardant cores improve safety by reducing flammability. Additionally, ACM panels allow for easy maintenance and retain their appearance over time, making them practical for long-term use.
Applications and Benefits
ACM aluminum composite panels offer a blend of versatility, durability, and aesthetic flexibility. Their applications range from exterior surfaces to interior designs, supporting both functional and decorative roles. These panels also provide practical advantages in maintenance and longevity.

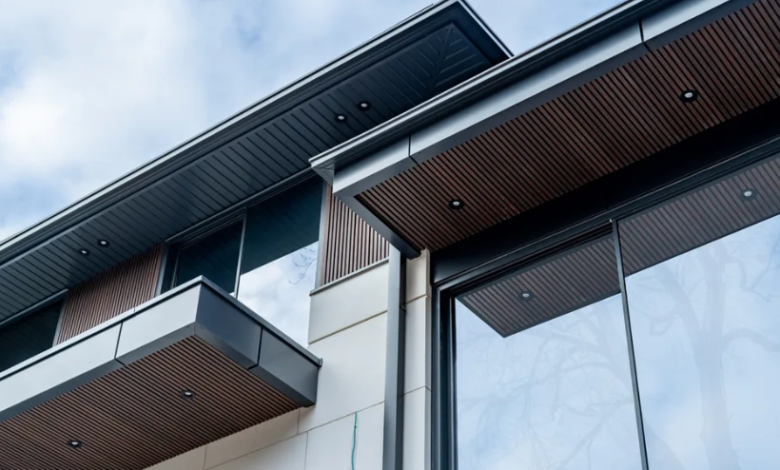

Architectural Cladding and Facades
ACM panels are widely used for building facades due to their lightweight nature and structural strength. They allow for sleek, modern exterior designs with customizable finishes and colors, enabling architects to achieve diverse visual effects.
The panels provide superior weather resistance, protecting buildings from rain, wind, and UV damage. Their flatness and rigidity maintain the integrity of large exterior surfaces, making them ideal for both new construction and renovation projects.
Interior Design Uses
Inside buildings, ACM panels serve as wall claddings, partitions, false ceilings, and column covers. Their smooth surface and available finishes contribute to a clean, contemporary look in commercial and residential interiors.
They are easy to fabricate and install, allowing designers flexibility in shaping and combining panels. The panels also meet fire safety standards, making them suitable for public spaces and offices where safety codes are critical.
Signage and Branding
ACM’s flat, durable surface is perfect for business signage, offering excellent print quality and long-lasting color retention. The panels maintain their appearance in various weather conditions, supporting outdoor and indoor branding needs.
Their lightweight structure simplifies installation and repositioning of signs. The material also resists corrosion and graffiti, reducing maintenance costs and preserving brand visibility over time.
Durability and Low Maintenance
ACM panels are resistant to corrosion, impact, and environmental pollutants, extending their useful life in harsh conditions. Their aluminum skin and core materials create a strong barrier that does not easily warp or degrade.
Maintenance requires only occasional cleaning with mild detergents, eliminating the need for frequent repainting or repairs. This durability combined with low upkeep makes ACM a cost-effective solution for both exterior and interior applications.
